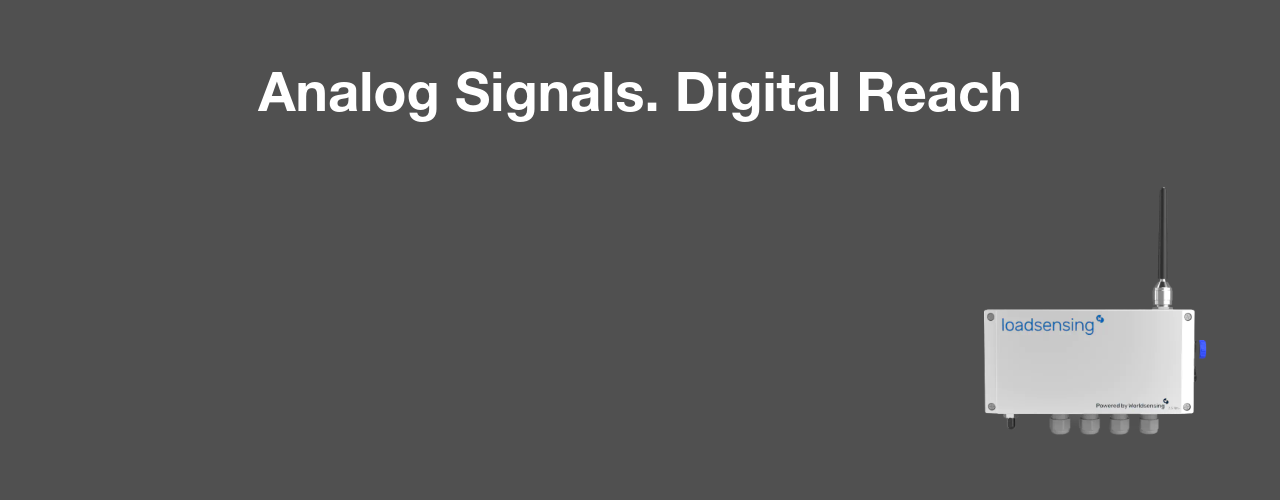

Analog Data Logger
4-channel wireless data acquisition for a wide range of analog sensors. Supports voltage, current loop, potentiometer, Full Wheatstone bridge, thermistor and PT-100 inputs — with up to 10 years of battery life and 15 km communication range.
Analog Data Logger
Model: LS-G6-ANALOG-4
4-Ch • Voltage/Current/Bridge • LoRaWANVersatile Wireless Data Acquisition for Analog Sensors
The Analog Data Logger is a 4-channel wireless device designed for unattended, long-term monitoring. It converts analog sensor signals into digital data with high accuracy and transmits them via secure LoRa networks — simplifying deployment and ensuring reliable data collection for bridges, tunnels, buildings, and industrial assets.
Supporting voltage, current loop, potentiometer, Full Wheatstone bridge, thermistor and PT-100 inputs, it seamlessly connects with load cells, strain gauges, pressure sensors, thermometers, flow sensors and more. Configurable through mobile or cloud applications.
Voltage, current, bridge, thermistor, PT-100
5V, 12V, 24V DC up to 60 mA per channel
On-site wiring recommendations via Mobile App
Threshold alerts & automated reporting
Sensor Compatibility
Universal analog sensor interface
This powerful 4-channel analog data logger supports inputs from most common analog sensors, enabling seamless connection with any voltage, current, and resistive transducers.
Not sure about compatibility?
Contact UsWhat Makes the Analog Data Logger Different
Purpose-built for connecting a wide range of analog sensors with long-range wireless data transmission and edge intelligence.
Universal Analog Inputs
Supports voltage (±10V), current loop (4-20 mA), potentiometer, Full Wheatstone bridge, thermistor, and PT-100 inputs — covering virtually all common analog sensors.
Flexible Sensor Power
Configurable power outputs at 5V, 12V and 24V DC (up to 60 mA per channel) — no external power supply needed for most sensors.
Ultra-Long Battery Life
Up to 10 years of unattended operation. User-replaceable battery with configurable reporting periods from 30 seconds to 24 hours.
Long-Range Wireless
LoRaWAN communications reaching up to 15 km in open terrain. Reliable data transmission even from manholes and tunnels.
IP68 Rated & Rugged
Industrial-grade IP68 enclosure for harsh environments. Operating range from −40°C to +80°C.
Mobile App Configuration
Wireless Bluetooth setup via Worldsensing App. Wiring assistant, field sampling, signal coverage testing and diagnostics — no laptop needed.
Monitoring Solutions for Every Environment
Explore the wide range of monitoring solutions the Analog Data Logger enables across geotechnical, structural, environmental and remote process monitoring.
Geotechnical Monitoring
Pore Water Pressure & Level
Connect piezometers and water level sensors to the analog logger for continuous groundwater monitoring in dams, slopes and excavations.
Soil Water Tension & Moisture
Tensiometers and granular matrix sensors for assessing soil water tension in geotechnical and agricultural applications.
Cross-Crack Movements
Wireline extensometers, crackmeters and displacement sensors for monitoring tension cracks across landslides and slopes.
Load in Rock Bolts & Ground Anchors
Load cells for monitoring anchor systems throughout their lifecycle — from load tests to long-term service.
Structural & Environmental Monitoring
Settlement & Heave
Liquid level settlement systems and tilt beams for monitoring building response to tunnelling, excavation and construction.
Loads & Movement in Bearings & Joints
Pressure transducers, extensometers and crackmeters for pot bearing pressure and structural joint monitoring.
Specific Weather Parameters
Thermistors, RH probes, pressure sensors and pyranometers for monitoring temperature, humidity, pressure and solar radiation.
Open Channel Flow & Pond Level
Non-contact level sensors, V-notch weirs and level sensors for flow monitoring in open channels and tailings ponds.
Remote Process Monitoring
Diesel Fuel Levels
Fuel tank level sensors for remote diesel fuel level monitoring at generator sites, remote installations and backup power systems.
Stresses in Shotcrete
Pressure cells for assessing tangential and radial stresses in shotcrete support for underground excavations and tunnels.
Radial & Tangential Stresses in Tunnels
Shotcrete pressure cells (NATM) for monitoring tensional states of concrete tunnel linings.
Strain & Stress in Steel Supports
Vibrating wire strain gauges and analog strain sensors for long-term strain measurement in steel arch supports and linings.
Analog Data Logger Specifications
| Device Type | Analog wireless data logger |
|---|---|
| Channels | 4 analog input channels |
| Input Types | Voltage (±10V), current loop (4-20 mA), potentiometer, Full Wheatstone bridge, thermistor, PT-100 |
| Power Output per Channel | 5V DC / 12V DC / 24V DC (up to 60 mA) |
| Warmup Time | Configurable (65 s MAX) |
| Data Transmission | LoRa radio communications (ISM sub GHz) |
| Operating Temperature | −40°C to +80°C |
| Weather Protection | IP68 |
| System Configuration | Worldsensing App (Bluetooth) • CMT Edge • CMT Cloud |
| Detailed Sensor Specifications | |||||||||||||||||||||||||||||||||||||||||||||||
|
Inputs: 4-ch analog
Range: 15 km LoRa
Temp: −40°C to +80°C
|
Battery @1hr:
1-ch: ~10 yrs
4-ch: ~10 yrs
|
|||||||||||||||||||||||||||||||||||||||||||||||
Need the full technical details?
Complete specs, diagrams, and compatibility info
Flexible Mounting for Any Environment
Choose the mounting configuration that best fits your deployment site.
Pole Mounting
Using aluminum plate WS-ACC-POLE-PL8 with 35 mm or 50 mm u-bolts for secure attachment to poles and posts.
Wall Mounting
Using external mounting brackets LS-ACC-MEC-MP (set of 2) for secure wall installation in tunnels and structures.
Got Questions About the Analog Data Logger?
Can't find what you're looking for? Contact our team — we're happy to help.
The Analog Data Logger is a wireless data acquisition IoT device that collects data from most analog signals and transmits them using long-range, low-power radio communications — ideal for geotechnical, structural, environmental and remote process monitoring.
The device connects to a specific analog sensor using any of its four different channels. It transmits data via Worldsensing LoRa networks to a CMT Edge for local-access, single-network deployments. Data can also be transmitted via the internet from the gateway to CMT Cloud for multi-project, multi-network deployment.
The Analog Data Logger supports voltage (±10V), current loop (4-20 mA), potentiometer, Full Wheatstone bridge, thermistor and PT-100 inputs. This covers load cells, strain gauges, pressure sensors, thermometers, flow sensors, temperature probes and many more analog sensors.
Battery life depends on the selected reporting period, number of active channels and sensor input type. With a 1-hour reporting interval, the logger achieves up to 10 years of battery life. With a 6-hour interval, it exceeds 10 years. The device uses 4 × 1.5V C cells that are user-replaceable.
In open sight, the range can reach up to 15 km (9.3 mi). In a city street, up to 4 km (2.5 mi). When placed in a manhole, the range is up to 2 km (1.2 mi), and in a tunnel it extends up to 4 km (2.5 mi). Range depends on terrain and environment.
Data protection and privacy are achieved through 128 AES (Advanced Encryption Standard) encryption on multiple levels, for all data being sent from the sensors to the application server and back.
