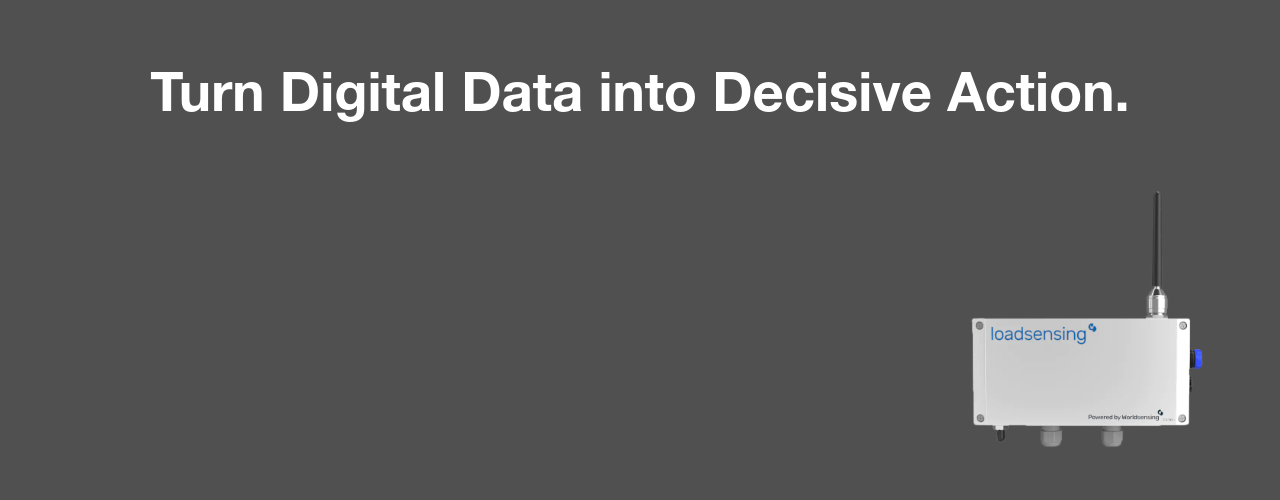

Digital Data Logger
The best option to stream data wirelessly from digital sensors using ModBus RTU communications. Connect in-place inclinometers (IPIs), multipoint borehole extensometers (MPBX), weather stations and more — with unrivalled autonomy and long range.
Digital Data Logger
Model: LS-G6-DIG-2
RS485 • ModBus RTU • LoRaWANWireless Data Acquisition for Digital Sensors
The Digital Data Logger is a robust, low-power, long-battery life device that connects to a wide catalog of digital sensors, streaming data wirelessly to your information systems. It leverages intelligent edge processing to automatically collect, process, and transmit sensor data — eliminating manual data retrieval even in remote or isolated locations.
Compatible with ModBus RTU and other proprietary protocols from leading geotechnical, structural, environmental and process sensor manufacturers. Suitable for connecting chains of sensors such as in-place inclinometers (IPIs) and multipoint borehole extensometers (MPBX).
Full/half duplex, ModBus RTU & proprietary protocols
Connect IPIs, MPBXs, ShapeArrays in series
Advanced setup & diagnostics via Worldsensing App
Threshold alerts & automated data processing
Sensor Compatibility
Digital sensor ecosystem
Compatible with a wide range of digital sensors from leading manufacturers. The RS485 port supports ModBus RTU and proprietary protocols for seamless connection with geotechnical, structural, environmental and process sensors.
Not sure about compatibility?
Contact UsWhat Makes the Digital Data Logger Different
Purpose-built for connecting digital sensor chains with long-range wireless data transmission and edge intelligence.
ModBus RTU & Proprietary Protocols
RS485 port supporting ModBus RTU and proprietary protocols from leading geotechnical, structural and environmental sensor manufacturers.
Ultra-Long Battery Life
Up to 10 years of unattended operation. User-replaceable battery with configurable reporting periods from 30 seconds to 24 hours.
Long-Range Wireless
LoRaWAN communications reaching up to 15 km in open terrain. 4G LTE option for cellular backhaul where needed.
IP68 Rated & Rugged
Industrial-grade IP68 enclosure for harsh environments. Operating range from −40°C to +80°C.
Mobile App Configuration
Wireless Bluetooth setup via Worldsensing App. Field sampling, signal coverage testing and diagnostics — no laptop needed.
Cloud & Edge Management
Configure locally via CMT Edge for single-network deployments, or connect to CMT Cloud for multi-project oversight from anywhere.
Monitoring Solutions for Every Environment
Explore the wide range of monitoring solutions the Digital Data Logger enables across geotechnical, structural and environmental monitoring.
Geotechnical Monitoring
In-ground Vertical & Lateral Displacement
In-place inclinometers and ShapeArrays positioned in boreholes for continuous monitoring of ground movements. Connect up to 200 segments of ShapeArray.
In-ground Displacement Between Anchors
Multi-point borehole extensometers and in-place extensometers. Digital MPBXs allow for reading more points with a single data logger.
Pore Water Pressure & Level
Connect piezometers and multi-point piezometers from all major manufacturers via digital interface for water level monitoring.
Load in Rock Bolts & Ground Anchors
Load cells for monitoring anchor systems throughout their lifecycle — from load tests to long-term service.
Structural & Environmental Monitoring
Loads & Movement in Bearings & Joints
Extensometers, pressure transducers and crackmeters for pot bearing pressure and displacement monitoring.
Comprehensive Weather Parameters
Compatibility with major weather transmitter manufacturers via digital interface. Monitor precipitation, temperature and more.
Water Quality
Multi-parameter water quality probes connected via digital interface for real-time water quality analysis.
Settlement & Heave
Liquid settlement systems and tilt beams for monitoring building response to tunnelling and excavation.
Remote Process Monitoring
Dewatering Operations
Control motor and pump protection systems. Monitor water flow with Variable Frequency Drives and flowmeters.
Stress Changes in Rock
Hollow Inclusion (HI) cells for 3-D stress measurements via digital converter — critical for underground excavation safety.
Soil Water Tension & Moisture
Connect tensiometers and granular matrix sensors for soil water tension assessment in geotechnical and agricultural applications.
Diesel Fuel Levels
Fuel tank level sensors for remote diesel fuel level monitoring at generator sites and remote installations.
Digital Data Logger Specifications
| Input Types | RS485 full or half duplex supported |
|---|---|
| Output Power | Regulated 12 V DC up to 200 mA in continuous operation. Maximum startup current peak of 1.5 A, up to 50 ms |
| Supported Protocols | ModBus RTU and proprietary protocols |
| Memory | 64,000 readings |
| Operating Temperature | −40°C to +80°C |
| Weather Protection | IP68 |
| System Configuration | Worldsensing App (Bluetooth) • CMT Edge • CMT Cloud |
| Detailed Sensor Specifications | |||||||||||||||||||
|
Interface: RS485 ModBus RTU
Range: 15 km LoRa
Temp: −40°C to +80°C
|
Battery @1hr:
1-ch: ~10 yrs
5-ch: ~10 yrs
|
|||||||||||||||||||
Need the full technical details?
Complete specs, diagrams, and compatibility info
Flexible Mounting for Any Environment
Choose the mounting configuration that best fits your deployment site.
Pole Mounting
Using aluminum plate WS-ACC-POLE-PL8 with 35 mm or 50 mm u-bolts for secure attachment to poles and posts.
Wall Mounting
Using external mounting brackets LS-ACC-MEC-MP (set of 2) for secure wall installation in tunnels and structures.
Got Questions About the Digital Data Logger?
Can't find what you're looking for? Contact our team — we're happy to help.
The Digital Data Logger is a wireless data acquisition IoT device that collects data from digital sensors using RS485 ModBus RTU communications or proprietary protocols and transmits them using long-range, low-power radio communications — ideal for geotechnical, structural and environmental monitoring.
The device connects to one or a string of digital sensors via the RS485 port. It transmits data via Worldsensing LoRa networks to a CMT Edge for local-access, single-network deployments. Data can also be transmitted via the internet from the gateway to CMT Cloud for multi-project, multi-network deployment — accessible from anywhere.
The Digital Data Logger connects to digital sensors using ModBus RTU and other proprietary protocols from leading geotechnical, structural, environmental and process sensor manufacturers — including in-place inclinometers (IPIs), ShapeArrays, multipoint borehole extensometers (MPBX), weather stations, water quality probes, and load cells.
Battery life depends on the selected reporting period and sensor configuration. With a 1-hour reporting interval, it achieves up to 7–10 years of battery life. With a 6-hour interval, it exceeds 10 years. The device uses user-replaceable battery cells.
In open sight, the range can reach up to 15 km (9.3 mi). In a city street, up to 4 km (2.5 mi). When placed in a manhole in a city street, the range is up to 2 km (1.2 mi), and in a tunnel it extends up to 4 km (2.5 mi). Range depends on terrain and environment.
Data protection and privacy are achieved through 128 AES (Advanced Encryption Standard) encryption on multiple levels, for all data being sent from the sensors to the application server and back.
