Wireless Tiltmeter with Event Detection
A 3-axis wireless tiltmeter designed for monitoring ground movements and structural integrity. Features edge processing, extended battery life up to 10 years, and smart connectivity for reliable, low-maintenance, real-time remote monitoring.
Tilt-XHP
Model: LSG7ACL-BXLH-TIL

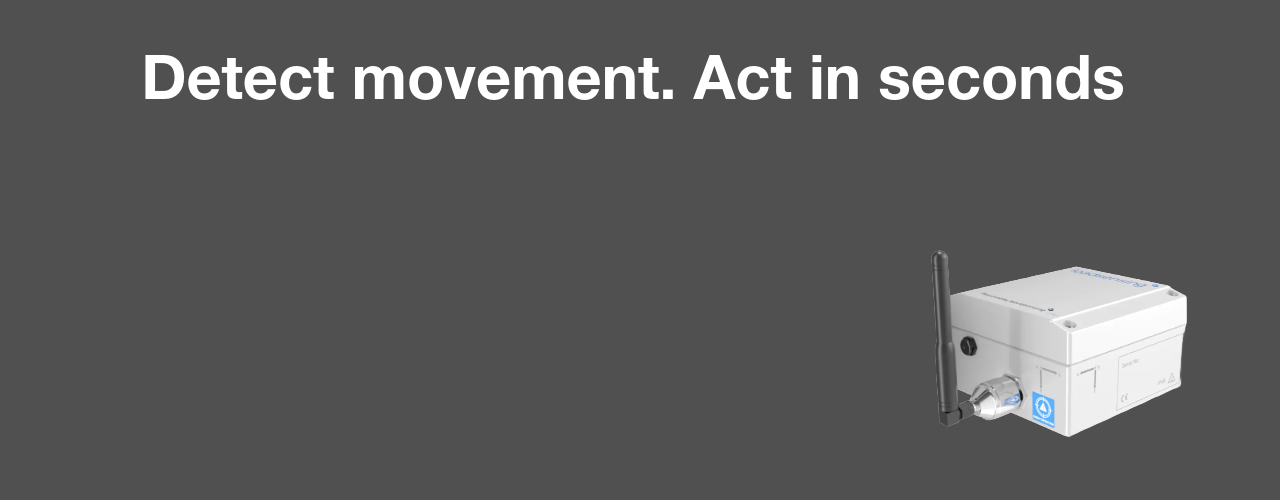

External Antenna
Tilt-IR

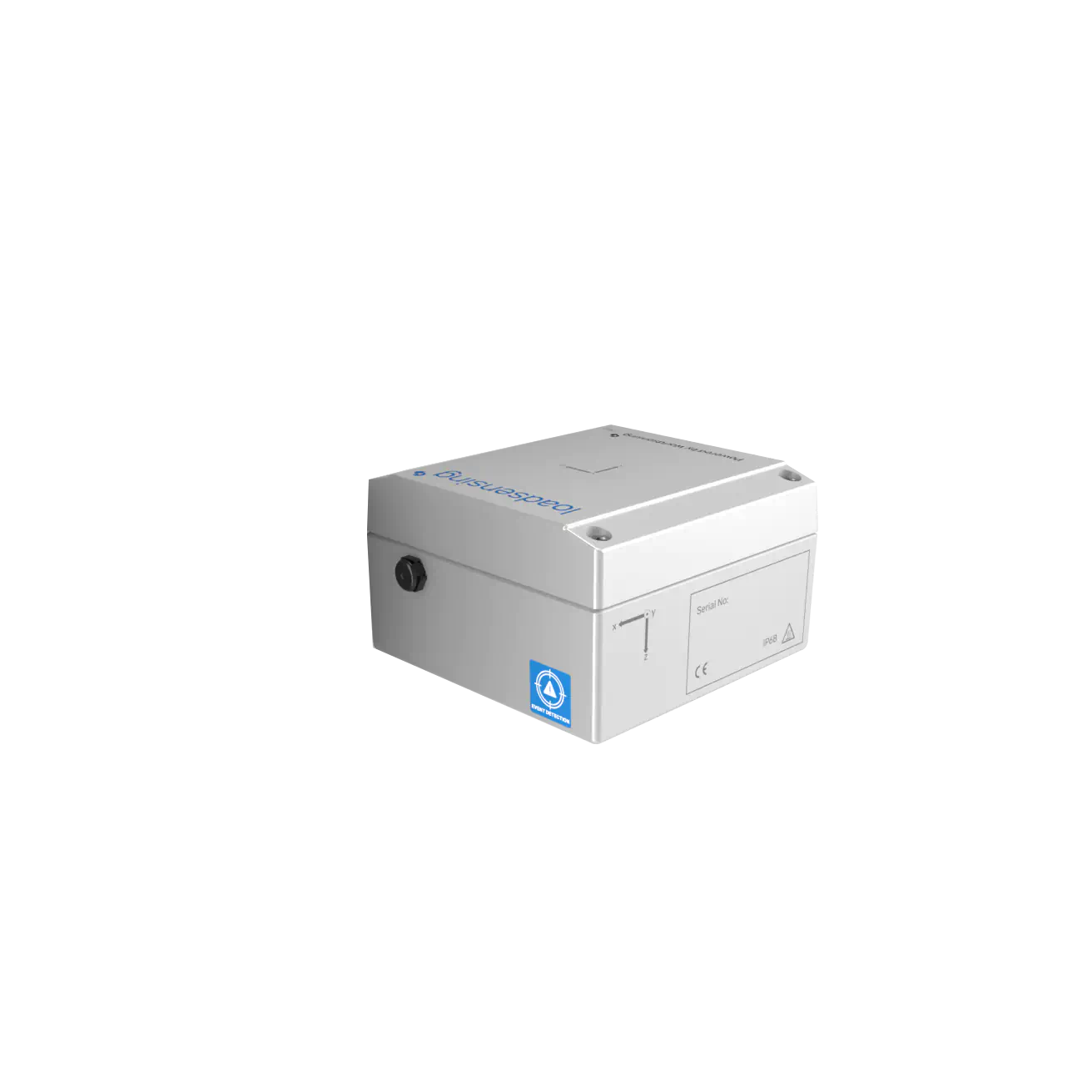

Model: LSG7ACL-BILR-TIL
Internal AntennaIntelligent Tilt Monitoring with On-Device Edge Processing
The Wireless Tiltmeter is a 3-axis inclinometer engineered to detect and report ground and structural movements with low noise and fast latency. It runs continuous sampling in normal operation and switches to high-frequency capture when preset thresholds are exceeded.
Available in two variants: Tilt-XHP with external antenna for maximum range, and Tilt-IR with internal antenna ideal for railway track monitoring where exposed parts must be minimized.
Integrated temperature & humidity sensors for enclosure integrity
Low-power accelerometer for trigger-based monitoring
Wireless configuration via Worldsensing App
Direct configuration in the field
Three Smart Modes for Any Monitoring Scenario
Advanced operational modes that optimize workflows, extend battery life, and provide immediate alerts when movement matters most.
Periodic Mode
Configure reporting periods from 30 minutes to 24 hours. Ideal for continuous, scheduled monitoring of structures with predictable data requirements.
Triggered Measurements Mode
Motion detection sensor detects activity events from variations in absolute angle, angular velocity or acceleration. When significant movement is detected, it triggers high-frequency capture.
Event Detection Mode
Configurable thresholds trigger instant alert messages when readings exceed set limits. First-alert latency is typically less than 2 seconds for immediate awareness.
What Makes the Wireless Tiltmeter Different
Purpose-built for unattended geotechnical and structural monitoring with edge intelligence and long-range wireless connectivity.
Long-Range Wireless
LoRaWAN communications reaching up to 15 km in open terrain. 4G LTE option available for cellular backhaul in remote deployments.
Extended Battery Life
Up to 10 years of unattended operation on a single 3.6V D-size LSH20 Li-SOCl2 battery cell. User-replaceable without special tools.
IP68 Rated & Rugged
Industrial-grade IP68 enclosure for full submersion protection. Operating range from −40°C to +80°C — suitable for the harshest field conditions.
Edge Processing
On-board algorithms classify tilt events in real-time, reducing false alarms and transmitting only meaningful data. High-rate capture when movement occurs.
Cloud & Edge Management
Configure locally via CMT Edge for single-network deployments, or connect to CMT Cloud for multi-project, multi-network oversight from anywhere.

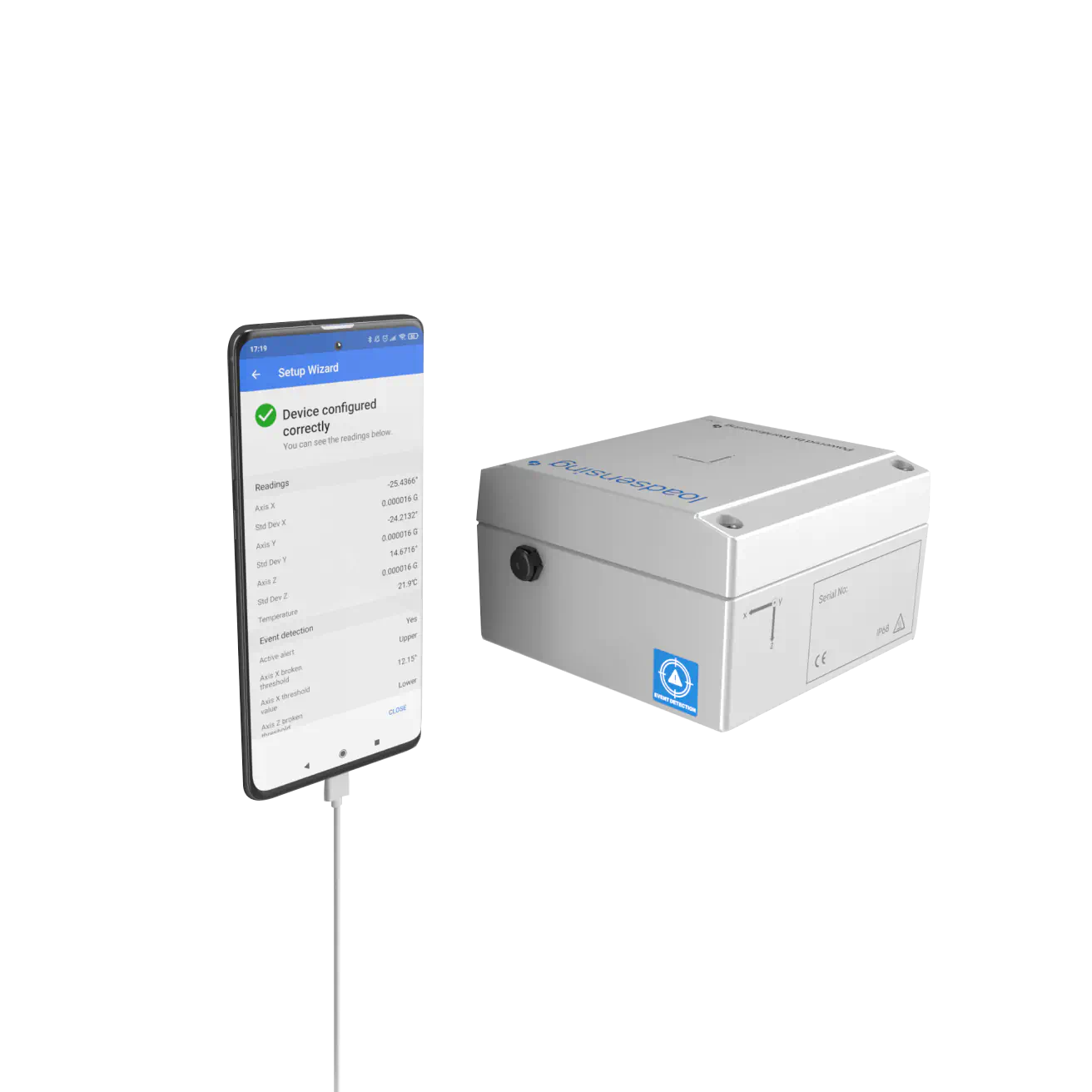

Mobile App Configuration
Wireless Bluetooth setup via Worldsensing App. USB-C connector also available for direct configuration in the field — no laptop needed.
Monitoring Solutions for Every Environment
Explore the wide range of monitoring solutions the Wireless Tiltmeter enables across railway, mining, and geotechnical environments.
Railway Monitoring
Track Alignment & Settlement
The Tilt-IR variant with internal antenna is ideal for railway track monitoring, minimizing exposed parts while providing continuous tilt and settlement data.
Embankment Stability
Monitor embankment slopes adjacent to railway corridors for early detection of ground movement that could affect track integrity.
Mining
Slope Stability in Open Pits
Continuous monitoring of pit wall angles for early warning of potential slope failures, ensuring personnel and equipment safety.
Tailings Dam Monitoring
Detect deformation in tailings dam embankments with high-precision tilt sensing and instant event alerts.
Geotechnical
Landslide Detection
Deploy on susceptible slopes for real-time detection of ground movement with configurable threshold alerts for early warning systems.
Retaining Wall Monitoring
Monitor wall tilt and rotation for structural health assessment of retaining structures in urban and infrastructure projects.
Excavation & Trench Safety
Real-time monitoring of excavation walls and adjacent structures during construction activities to prevent collapse.
Tunnel Deformation
Monitor tunnel lining convergence and deformation during and after construction for safety assurance.
Wireless Tiltmeter Specifications
| Sensor Type | 3-axis MEMS accelerometer |
|---|---|
| Secondary Sensors | Motion detection sensor, temperature sensor, humidity sensor |
| Device Variants | Tilt-XHP (external antenna) • Tilt-IR (internal antenna) |
| Operational Modes | Periodic mode, Triggered Measurements Mode (TMM), Event Detection mode |
| Range | ±90° (3-axis inclination) |
| Power Source | 1 × 3.6V D-size LSH20 Li-SOCl2 battery cell |
| Operating Temperature | −40°C to +80°C |
| Weather Protection | IP68 |
| System Configuration | Worldsensing App (Bluetooth) • CMT Edge • CMT Cloud |
| Surge Protection | IEC61000-4-5, Class 2 |
| Detailed Sensor Specifications | |||||||||||||||||||||||||||||||||||
|
Range: ±90°
Accuracy (±4°): ±0.005°
Repeatability: <0.0005°
|
At 1 hr reporting:
5.3 years
|
|||||||||||||||||||||||||||||||||||
Need the full technical details?
Complete specs, diagrams, and compatibility info
Flexible Mounting for Any Environment
Choose the mounting configuration that best fits your deployment site.
Pole Mounting
Using aluminum plate WS-ACC-POLE-PL8 with 35 mm or 50 mm u-bolts for secure attachment to poles and posts.
Wall Mounting
Using external mounting brackets LS-ACC-MEC-MP (set of 2) for secure wall installation in tunnels and structures.
Horizontal & Surface Mounting
Using versatile plate LS-ACC-IN15-HP for horizontal and vertical surface deployment.
Got Questions About the Wireless Tiltmeter?
Can't find what you're looking for? Contact our team — we're happy to help.
It tracks rapid or sudden inclination changes in structures, slopes, or rail systems — detecting motion that may signal instability, movement, or failure events in real time. The 3-axis MEMS sensor measures tilt relative to gravity with a range of ±90°.
The sensor continuously measures tilt angles and uses built-in algorithms to trigger alerts instantly when thresholds are exceeded. It supports Periodic mode, Triggered Measurements Mode (TMM), and Event Detection mode for flexible monitoring.
Tilt-XHP (LSG7ACL-BXLH-TIL) features an external antenna for maximum range, ideal for open-terrain deployments. Tilt-IR (LSG7ACL-BILR-TIL) has an internal antenna for railway track monitoring where exposed parts must be minimized.
Battery life depends on the selected reporting period. With a 1-hour reporting interval, the Tilt-XHP achieves up to 5.3 years. With a 6-hour interval, it reaches up to 7.7 years. The device uses a user-replaceable 3.6V D-size LSH20 battery.
Configuration can be done locally via the Worldsensing App using Bluetooth connectivity, or remotely using CMT Edge for single-network deployments and CMT Cloud for multi-project oversight. USB-C connector also available.
Ideal for railway tracks, slopes, retaining walls, tunnels, bridges, mining pits, and tailings dams — anywhere fast, autonomous tilt event detection enhances safety and operational awareness.
