Wireless Tiltmeter — 3-Axis High-Precision Inclinometer
High-resolution 3-axis inclination sensor for monitoring angular displacement and long-term tilt trends in structures, slopes, rail tracks and tunnels. Available with external or internal antenna for flexible deployment.
Tiltmeter XHP
Model: LS-G6-TIL90-X
External Antenna
Tiltmeter IR
Model: LS-G6-TIL90-I
Internal Antenna3-Axis Inclination Monitoring for Infrastructure
The Wireless Tiltmeter is a compact, 3-axis inclinometer built for long-term, unattended monitoring of slopes, structures, rail tracks and tunnelling works. It reports high-resolution inclination values plus measurement uncertainty to support noise filtering and trustworthy trend analysis.
Available in two variants — XHP with external antenna for maximum range in high-precision applications, and IR with internal antenna for compact, vandal-resistant installations such as rail track monitoring.
New to inclination sensing? Read our guide on what an inclinometer is, and how digital tiltmeters work.
Gravity-referenced readings for complete tilt picture
Integrated temperature sensor for drift-free readings
Triggered mode for rapid movement alerts
Wireless config via Worldsensing App
Key Benefits
Intelligent power modes and efficient reporting keep sensors running for years.
Factory calibration and per-device parameters for precise, repeatable tilt readings.
Rugged IP68 design and wide operating temperature range for exposed infrastructure.
Trigger modes for rapid movement detection, plus seamless cloud/edge integration.
What Makes the Wireless Tiltmeter Different
Purpose-built for unattended tilt monitoring with edge intelligence and long-range wireless connectivity.
3-Axis Precision
Three-axis MEMS accelerometer with gravity-referenced inclination readings across ±90° range. Factory-calibrated for drift-free, repeatable measurements in any orientation.
Smart Event Detection
Motion detection sensor triggers measurements from variations in absolute angle, angular velocity or acceleration. Configurable delays and cooldown periods for efficient alerting.
Ultra-Long Battery Life
Up to 10 years of unattended operation on 2 x 3.6V C-size batteries. User-replaceable without special tools. Extended modes reach >25 years at 6hr reporting intervals.
Long-Range Wireless
LoRaWAN communications reaching up to 15 km in open terrain. External antenna variant (XHP) for maximum range; internal antenna (IR) for compact, vandal-resistant installations.
IP68 Rugged Design
Industrial-grade IP68 enclosure for full submersion protection. Operating range from −40°C to +80°C — suitable for tunnels, mines, bridges and exposed infrastructure.
Cloud & Edge Management
Configure locally via CMT Edge for single-network deployments, or connect to CMT Cloud for multi-project oversight. Bluetooth and USB-C configuration via the Worldsensing App.
Tiltmeter Operational Modes
The Tiltmeter lets you choose between operational modes in addition to periodic readings so you can tailor data collection to your project needs. These modes optimize workflows, extend battery life, and reduce the number of devices required in the field.
Capture Measurements Exactly When Movement Matters
The Tiltmeter's motion detection sensor actively monitors changes in angle, angular velocity, and acceleration. When a significant movement is detected, it triggers the primary sensor to capture detailed measurements, exactly when you need them.
You can customize when and how many measurements are taken (on event, after event, both, or across multiple events) and set delays and cooldown periods to match your monitoring needs.
This intelligent mode reduces unnecessary data transmission, keeps battery consumption low, and focuses on the movements that matter most, giving you actionable insights without overloading your system.

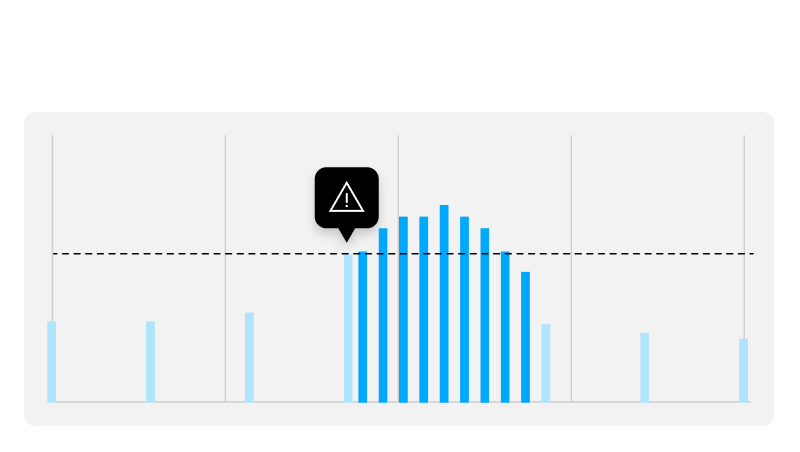

Instant Alerts When Thresholds Are Exceeded
The Tiltmeter continuously monitors tilt at 3.9 Hz, instantly checking measurements against configurable thresholds.
If a threshold is exceeded, the system sends an alert in under 2 seconds and automatically increases reporting frequency to capture detailed data during the event. Once the movement stabilizes, monitoring returns to its standard reporting interval, ensuring efficient, focused, and timely insights.
Tilt Monitoring for Every Environment
Deploy the Wireless Tiltmeter across geotechnical, structural and rail monitoring applications where precise inclination data drives critical decisions.
Tunnel Deformation
Monitor tunnel lining rotation and convergence during and after excavation. Early detection of ground movement ensures worker safety and structural integrity.
Rail Track Geometry
Track cant and alignment monitoring for rail networks. Compact IR variant with internal antenna ideal for trackside installation without obstruction.
Slope Stability
Continuous monitoring of landslide-prone slopes and embankments. Triggered event detection provides instant alerts when movement thresholds are exceeded.
Bridge & Structure Tilt
Monitor pier settlement, bearing rotation and overall structural inclination on road and rail bridges during construction and service life.
Construction Monitoring
Track excavation wall deflection, adjacent building settlement and temporary works stability throughout the construction lifecycle.
Dam Monitoring
Long-term crest displacement and embankment deformation monitoring for dam safety assurance and regulatory compliance.
Wireless Tiltmeter Specifications
| Sensor Type | 3-axis MEMS accelerometer and integrated thermometer |
|---|---|
| Measurement Range | ±90° (3-axis inclination) |
| Device Variants | LS-G6-TIL90-X (external antenna) • LS-G6-TIL90-I (internal antenna) |
| Secondary Sensor | Integrated temperature sensor, humidity sensor, barometer |
| Operational Modes | Periodic mode, Triggered mode (event detection) |
| Power Source | 2 × 3.6V C-size batteries (replaceable) |
| Data Transmission | LoRa radio communications (ISM sub-GHz) |
| Operating Temperature | −40°C to +80°C |
| Weather Protection | IP68 |
| System Configuration | Worldsensing App (Bluetooth) • CMT Edge • CMT Cloud |
| Detailed Sensor Specifications | |||||||||||||||||||||||||||||||||||
|
Accuracy (XHP): ±0.005°
Accuracy (IR): ±0.006°
Resolution: ±0.0001°
|
At 1 hr:
XHP 5.1 yrs
IR 5.1 yrs
| |||||||||||||||||||||||||||||||||||
Need the full technical details?
Complete specs, diagrams, and compatibility info
Flexible Mounting for Any Environment
Choose the mounting configuration that best fits your deployment site.

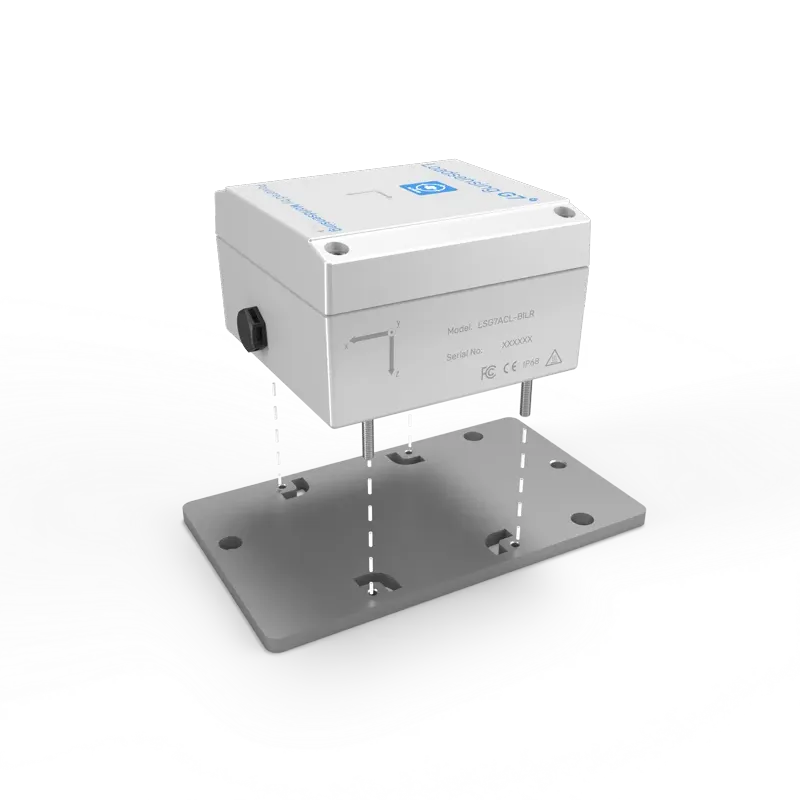

Recommended Surface Mounting
Plate for horizontal and vertical mounting. Secures with anchor rods or glue and features a threaded hole for a monitoring prism or leveling screw.

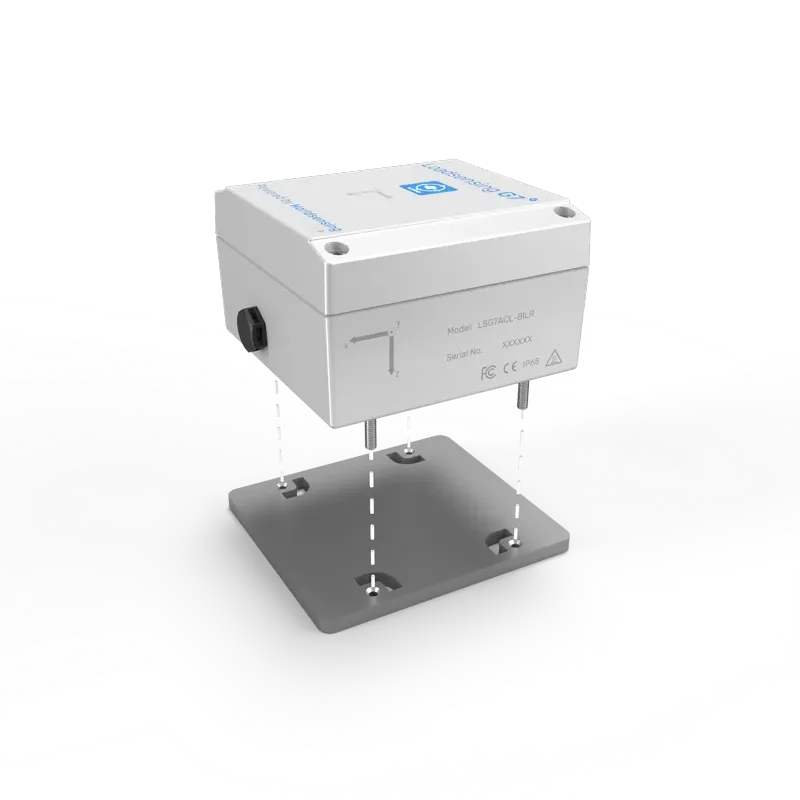

Rail Track Mounting
Horizontal surface mounting plate designed for track monitoring — glued to the surface for fast, robust fixing.

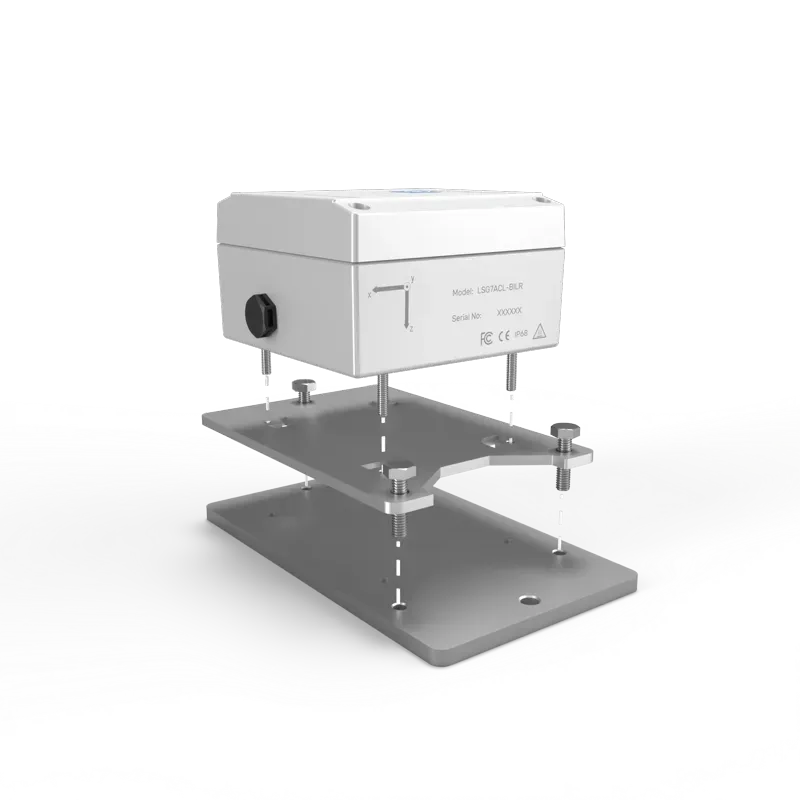

Double Plate Mounting
Versatile double plate for horizontal mounting without opening the device. Attaches with glue and features a threaded hole for a prism or leveling screw.

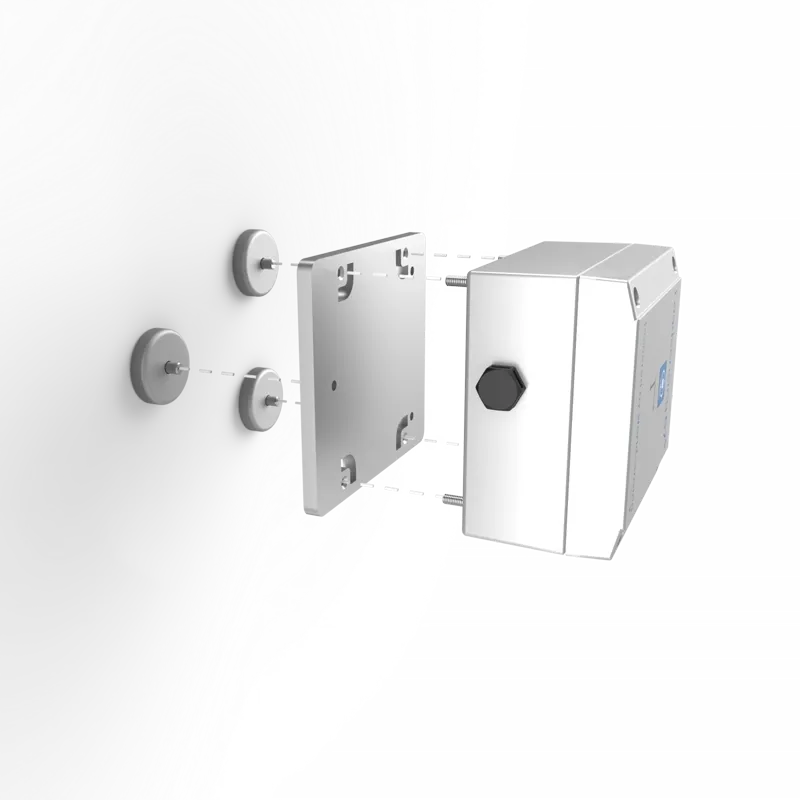

Magnetic Mounting
Mounting plate with a magnet kit attached to the back to mount on metallic surfaces — a versatile, tool-free tiltmeter mounting option.

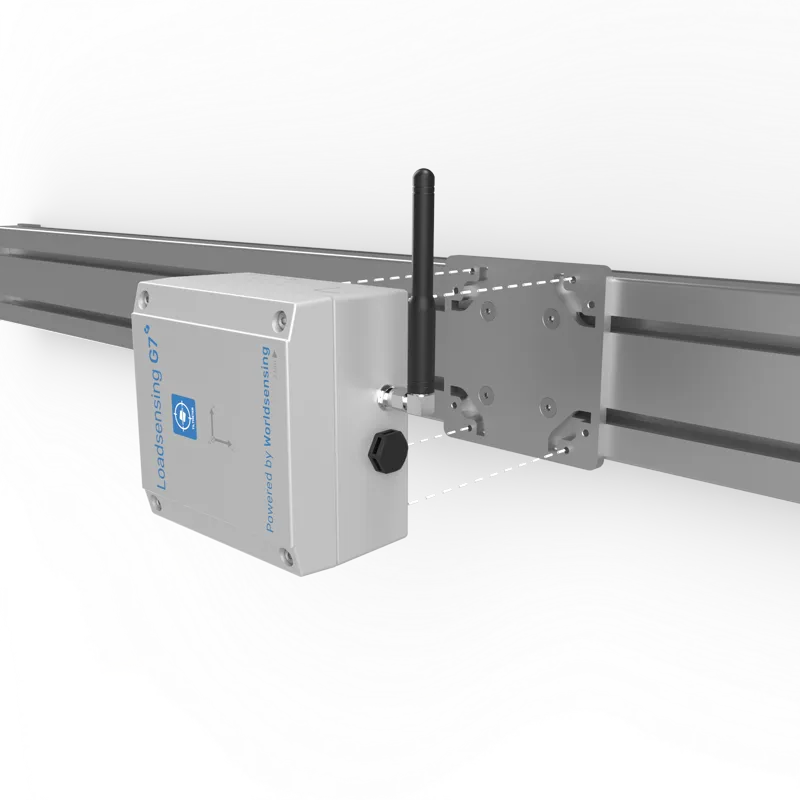

Tilt Beam Mounting
Fixation kit for beam accessory mounting — attachment to tilt beams for precise beam inclination monitoring in geotechnical applications.

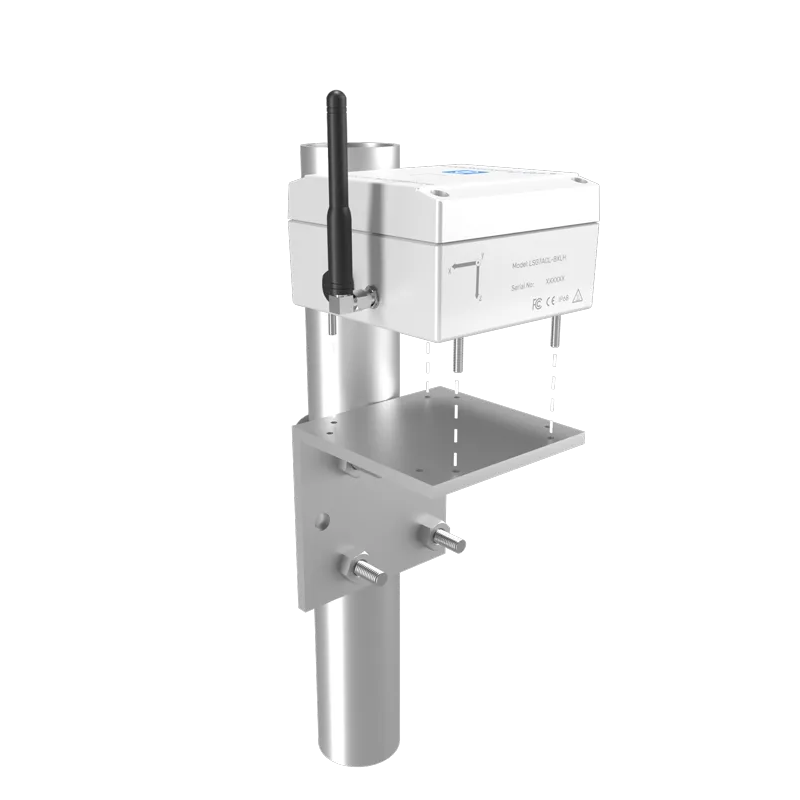

Pole Mounting
L-shaped mount attached to a 50 mm pole with u-bolts for secure attachment to poles, posts and vertical structures.
Got Questions About the Wireless Tiltmeter?
Can't find what you're looking for? Contact our team — we're happy to help.
A Tiltmeter measures small changes in an object's inclination — rotation, settlement, track cant or slow tilt of slopes and structures. It reveals gradual trends and sudden shifts that indicate instability or misalignment.
Precision MEMS accelerometers sense the gravity vector and temperature. Onboard firmware converts those signals into angle values with compensation and filtering, timestamps each sample, and forwards readings to your gateway or cloud for analysis.
Tiltmeters capture very small, repeatable changes — much smaller than what the human eye detects. With ±0.0001° resolution and repeatability as low as <0.0003°, they are suitable for the most demanding engineering applications.
The device runs in low-power modes and can operate unattended for up to 10 years at typical reporting intervals. Batteries are user-replaceable without tools. Routine checks of physical mounts and antenna are recommended during scheduled site visits.
Yes — data is transmitted via LoRa/LoRaWAN gateways to cloud endpoints in common data formats and APIs. It integrates with dashboards, alarm systems, asset-management software, and custom webhooks can be configured.
The XHP variant features an external antenna for maximum range (up to 15 km in open terrain), ideal for high-precision applications. The IR variant has an internal antenna for a compact, vandal-resistant design — perfect for rail track monitoring and tight installations.
